History Array

H: numpy structured array
    A record of runtime attributes and output data for all ensemble members.

Overview

libEnsemble uses a NumPy structured array to store information about each point (ensemble member) generated and processed in the ensemble.

The manager maintains a global copy. Each row contains:

  1. Data generated by the generator

  2. Resultant output from the simulator function

  3. Reserved fields containing metadata

Simulator functions (sim_f) must return their data as arrays with the same dtype as sim_specs["out"]. Alternatively, a simulator callable in gest-api format (accepting and returning a dict) can be provided via SimSpecs.simulator; libEnsemble wraps it automatically and handles the dtype conversion.

Generators that adhere to the gest_api standard implement suggest() and ingest() methods that operate on lists of Python dictionaries. libEnsemble automatically casts their dict outputs to NumPy for inclusion in the History array.

When using a VOCS object (from gest_api.vocs) to parameterize GenSpecs or SimSpecs, field names in the History array are derived automatically from the VOCS variable, objective, and constraint keys. LibensembleGenerator subclasses optionally collapse all VOCS variables into a single "x" array field (and objectives into "f") unless an explicit variables_mapping is provided.

Ensure input/output field names for a function match each other or a reserved field:

gen_specs["out"] = [("x", float, 2), ("theta", int)]  # produces "x" and "theta"
sim_specs["in"] = ["x", "theta", "sim_id"]  # accepts "x", "theta" and "sim_id", a reserved field

Reserved Fields

User fields and reserved fields are combined together in the final History array returned by libEnsemble.

These reserved fields can be modified to adjust how/when a point is evaluated:

  • sim_id [int]: Each unit of work must have a sim_id. This can be set by the generator or by the manager by default. Users should ensure these IDs are sequential and unique when running multiple generators.

  • cancel_requested [bool]: Can be set True in a generator to request attempted cancellation of the corresponding simulation.

The following fields are automatically populated by libEnsemble:

gen_worker [int]: Worker that generated this entry

gen_started_time [float]: Time gen_worker was initiated that produced this entry

gen_ended_time [float]: Time gen_worker requested this entry

sim_worker [int]: Worker that did (or is doing) the sim evaluation for this entry

sim_started [bool]: True if entry was given to sim_worker for sim evaluation

sim_started_time [float]: Time entry was given to sim_worker for a sim evaluation

sim_ended [bool]: True if entry’s sim evaluation completed

sim_ended_time [float]: Time entry’s sim evaluation completed

gen_informed [bool]: True if gen_worker was informed about the sim evaluation of this entry

gen_informed_time [float]: Time gen_worker was informed about the sim evaluation of this entry

kill_sent [bool]: True if a kill signal was sent to worker for this entry

Other than "sim_id" and "cancel_requested", these fields cannot be overwritten by user functions when libE_specs["safe_mode"] is set to True (protection is opt-in; the default value of safe_mode is False).

Example Workflow updating History

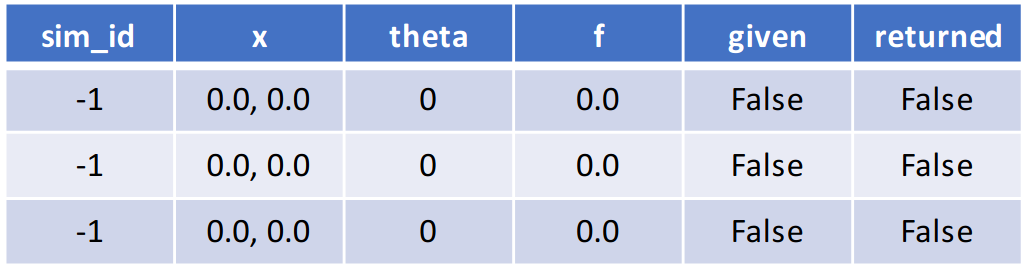

Step 1: The history array is initialized on the manager

The history array is initialized using the libEnsemble reserved field and the user-provided gen_specs["out"] and sim_specs["out"] entries. In the figure below, only the reserved fields: sim_id, sim_started, and sim_ended are shown for brevity.


For legacy generator functions (gen_f), the function accepts a local history array slice as the first argument containing only the rows and fields specified by gen_specs["in"] (may be empty). It returns a NumPy structured array that libEnsemble writes into H.

For gest-api generators, suggest(n) returns a list of dicts and ingest(results) receives a list of dicts; libEnsemble handles all conversions to and from NumPy.

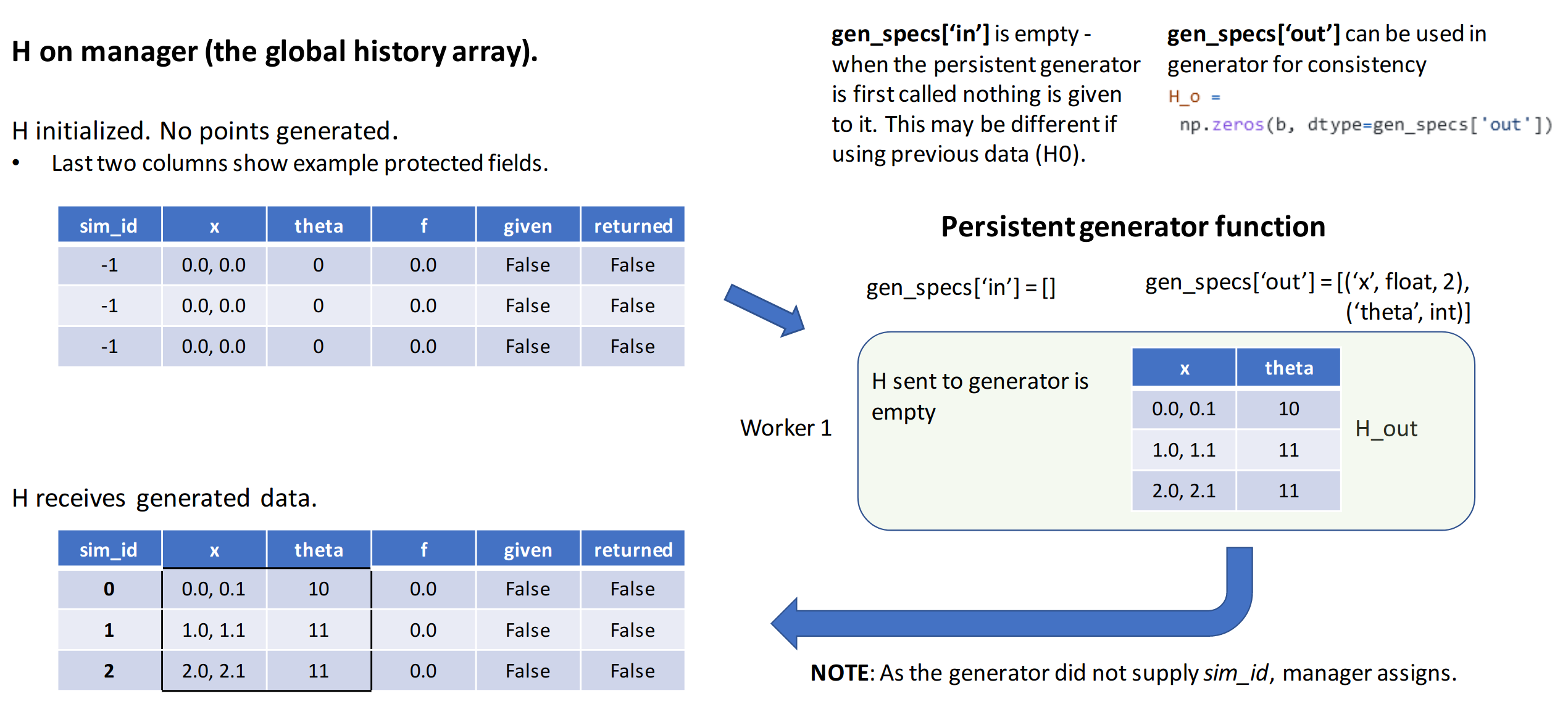

Step 2: Persistent generator gen_f is called

../_images/history_gen1.png

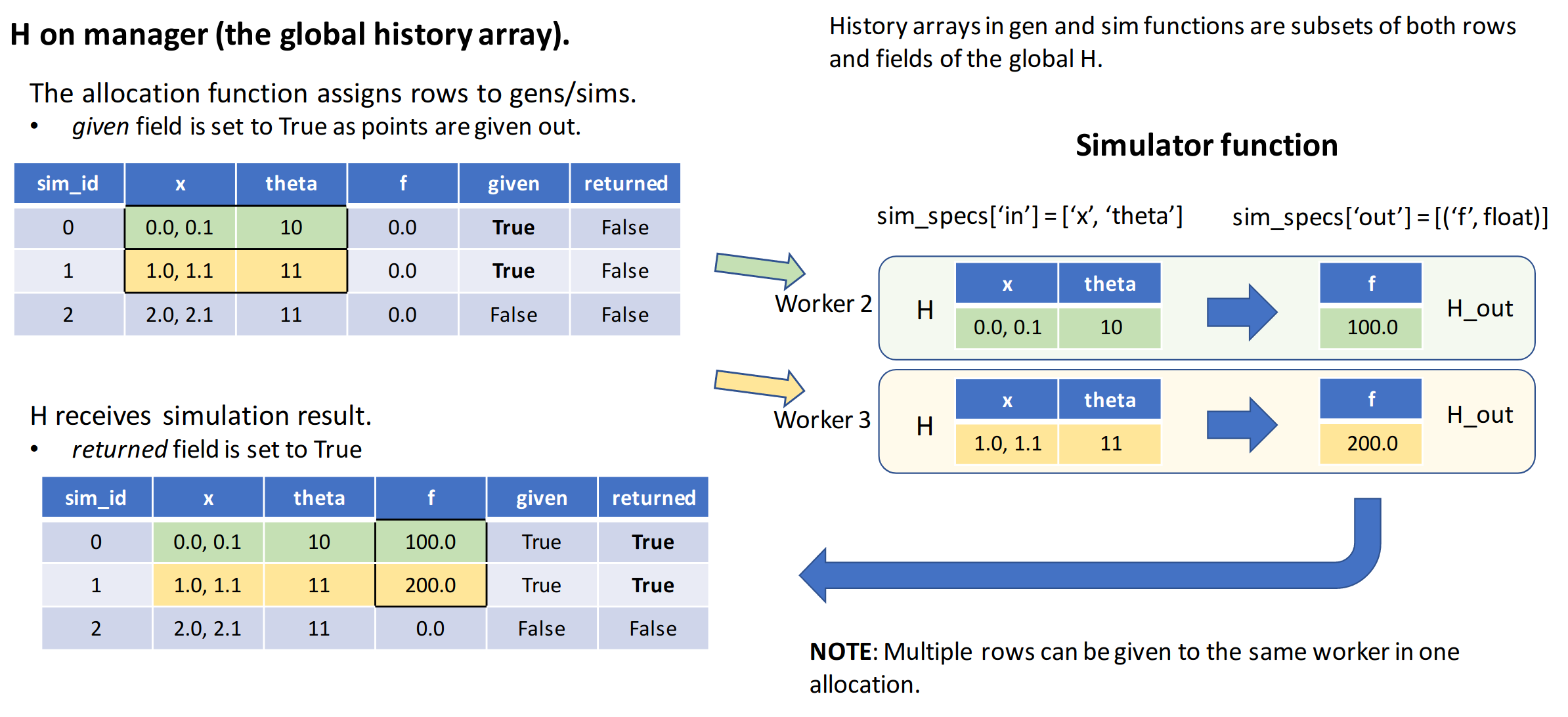

Step 3: Points are given out for sim_f to evaluate

../_images/history_sim1.png

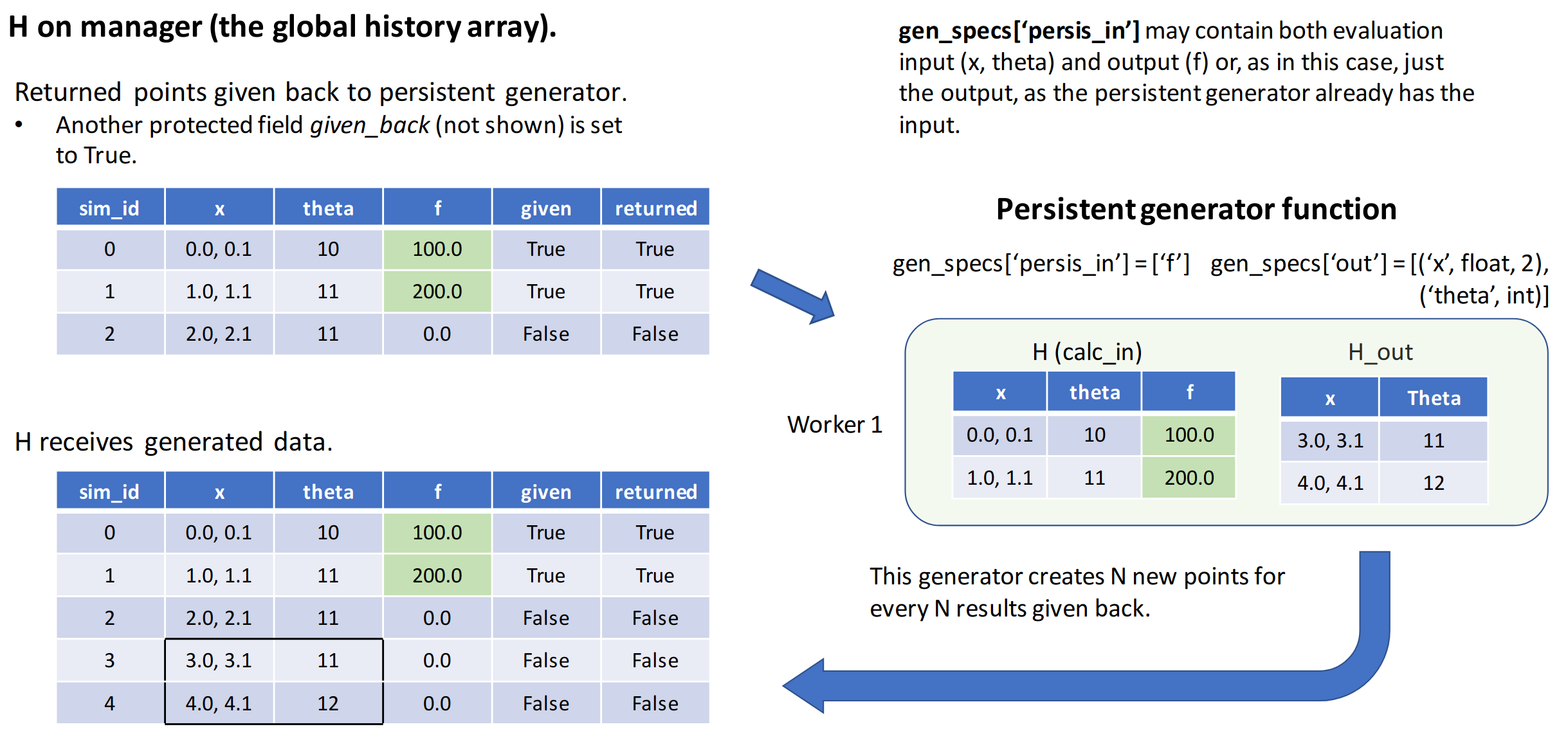

Step 4: Results returned to persistent generator gen_f

../_images/history_gen2.png
